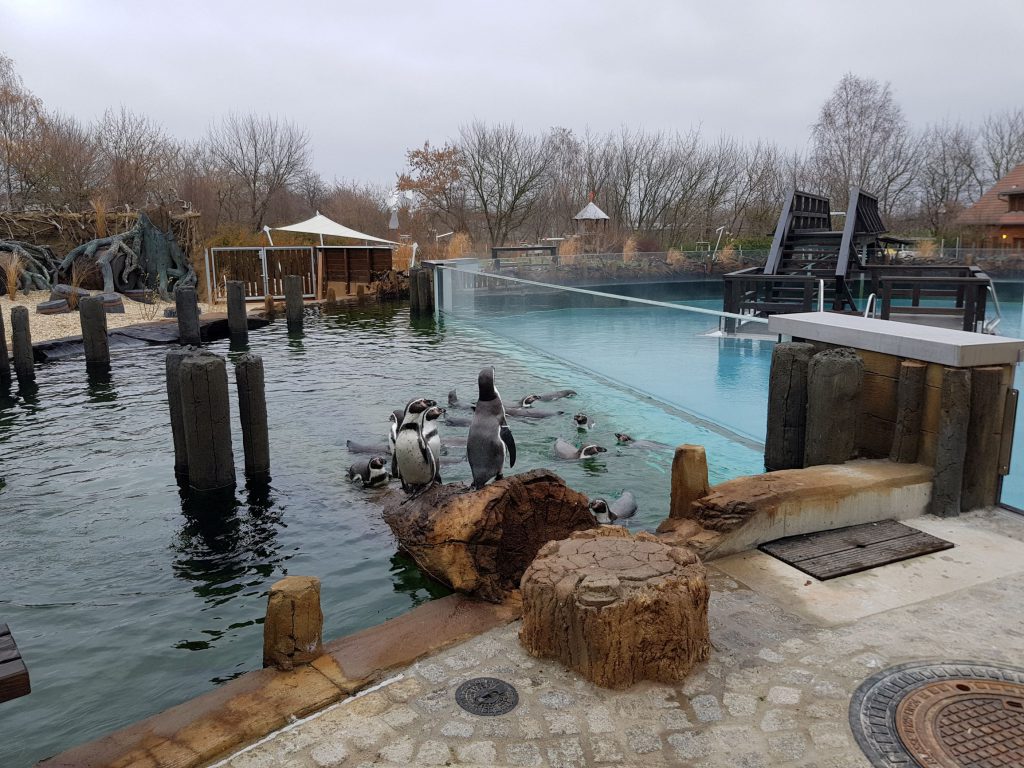

Spreewelten Lübbenau Spa and penguins

back to overview "Aquarium"

• Spreeweltenbad GmbH, Germany
• in collaboration with
  USO Ingenieure

material:

PLEXIGLAS® 0F00 TRANSAQUA®

window 1:

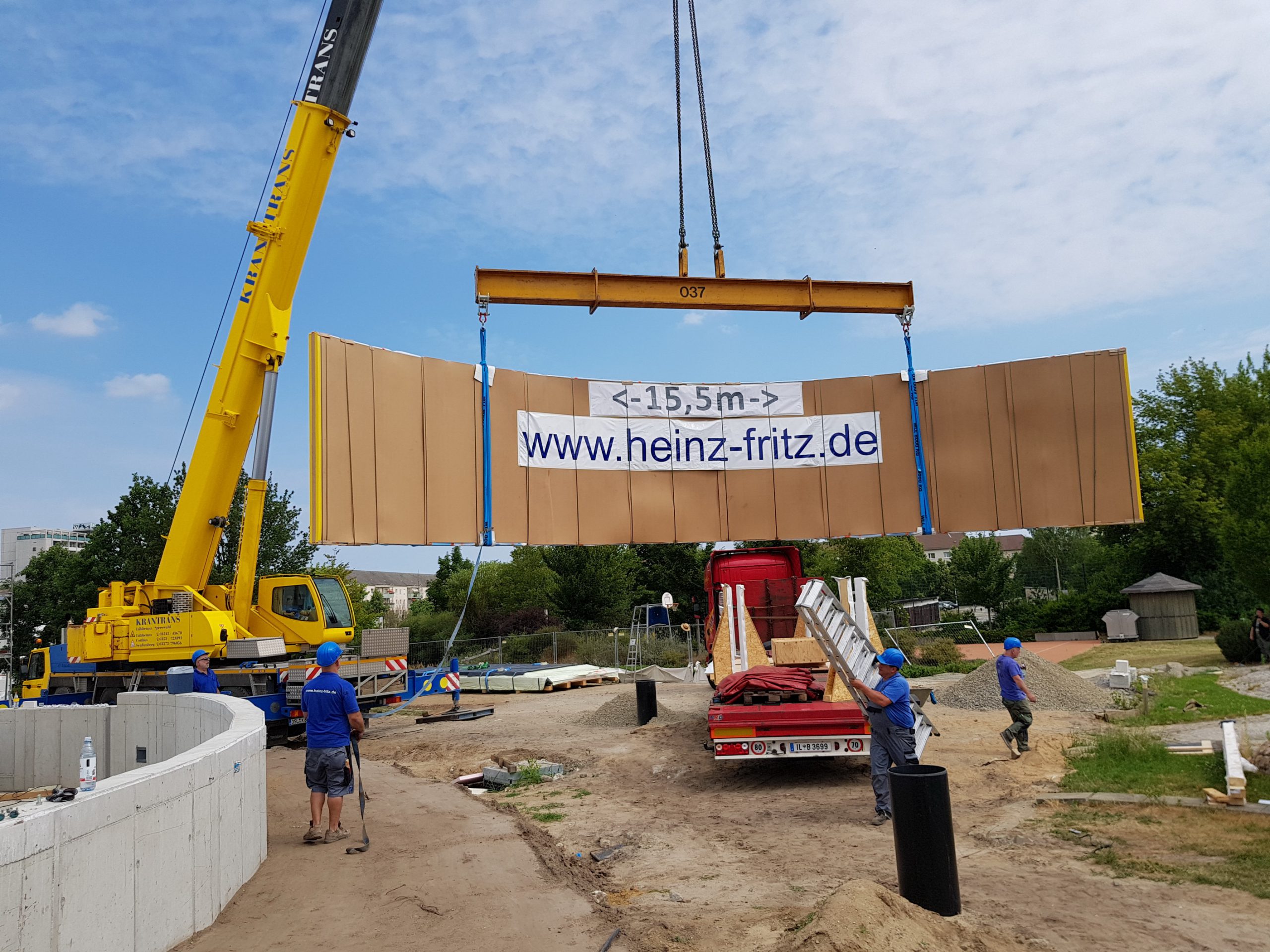

thermally deformed a central bond unwinding: l = 15500 mm radius: r = 8200 mm height: h = 3000 mm thickness: t = 120 mm weight: wt = approx. 6,5 t

window 2:

a central bond length: l = 10000 mm height: h = 3000 mm thickness: t = 120 mm weight: wt = approx. 4.3 t

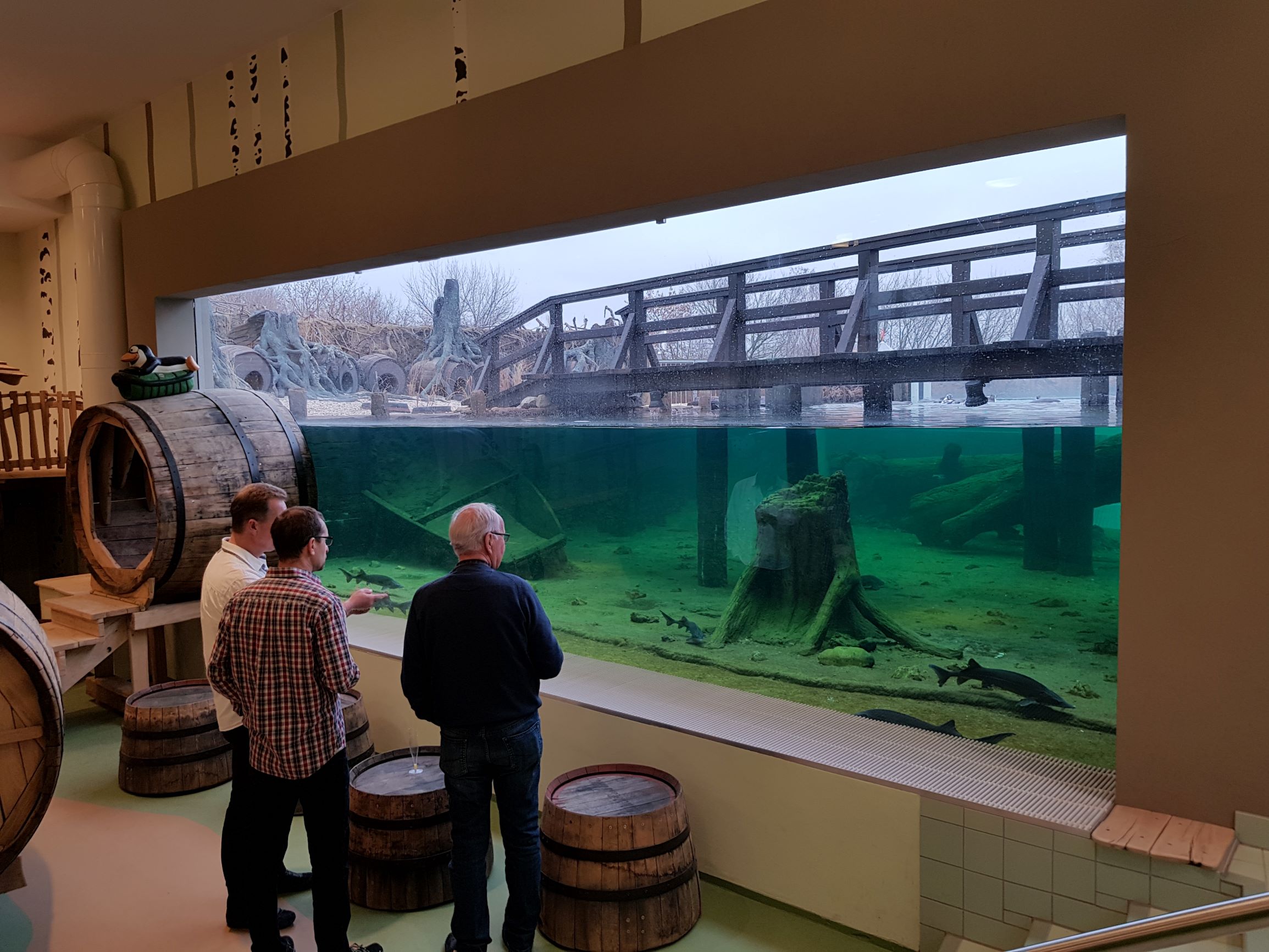

window 3:

length: l = 7700 mm height: h = 2700 mm thickness: t = 100 mm weight: wt = approx. 2,5 t

see also project Spreeweltenbad Lübbenau swimming with penguins
